Measurement Finder

Drapery Measuring Instruction

Simplify your curtain measuring process with our Measurement Finder, designed to guide you effortlessly through each step for a smooth, hassle-free experience. For a more in-depth, professional measurement, we’ve also prepared a detailed guide for you below.

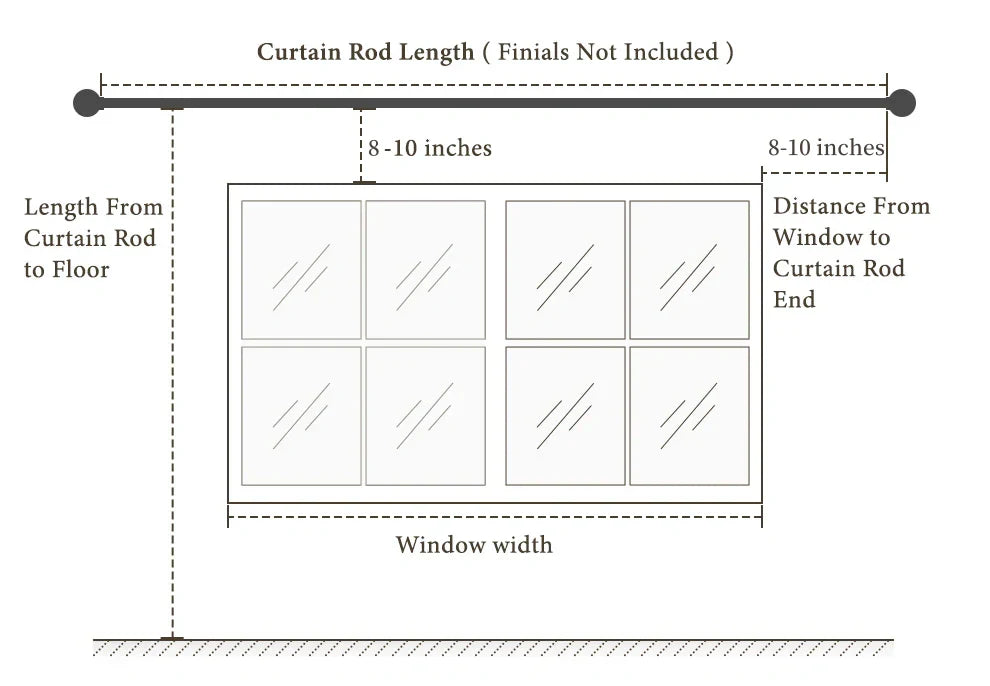

Curtain Rod Measurement Guide

Installed Curtain Rod

Measure the length of the existing curtain rod directly

Uninstalled Curtain Rod

Determine installation position:
- Plan the installation area above the window frame
- Determine the extended installation range on both sides
Select mounting height:
- Choose height based on desired visual effect
- Consider space needed for curtain draping effect

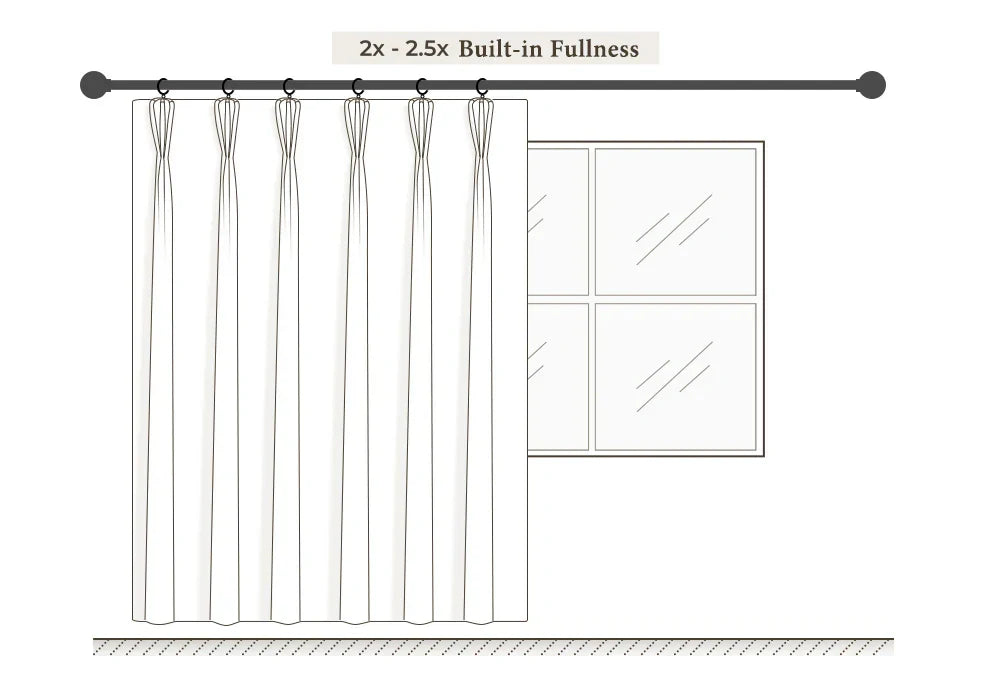

Curtain Fullness Guide

Preventing Flat Appearance

Use 200-250% fabric fullness to create natural pleats
Ensures rich, luxurious curtain drapery effect

Fullness Recommendations

Pinch Pleat: 2x fullness (200% of window width)
Triple Pleat: 2.3x - 2.5x fullness (230%-250% of window width)

Width Selection Note

No need for additional width calculations
Simply select your desired finished width

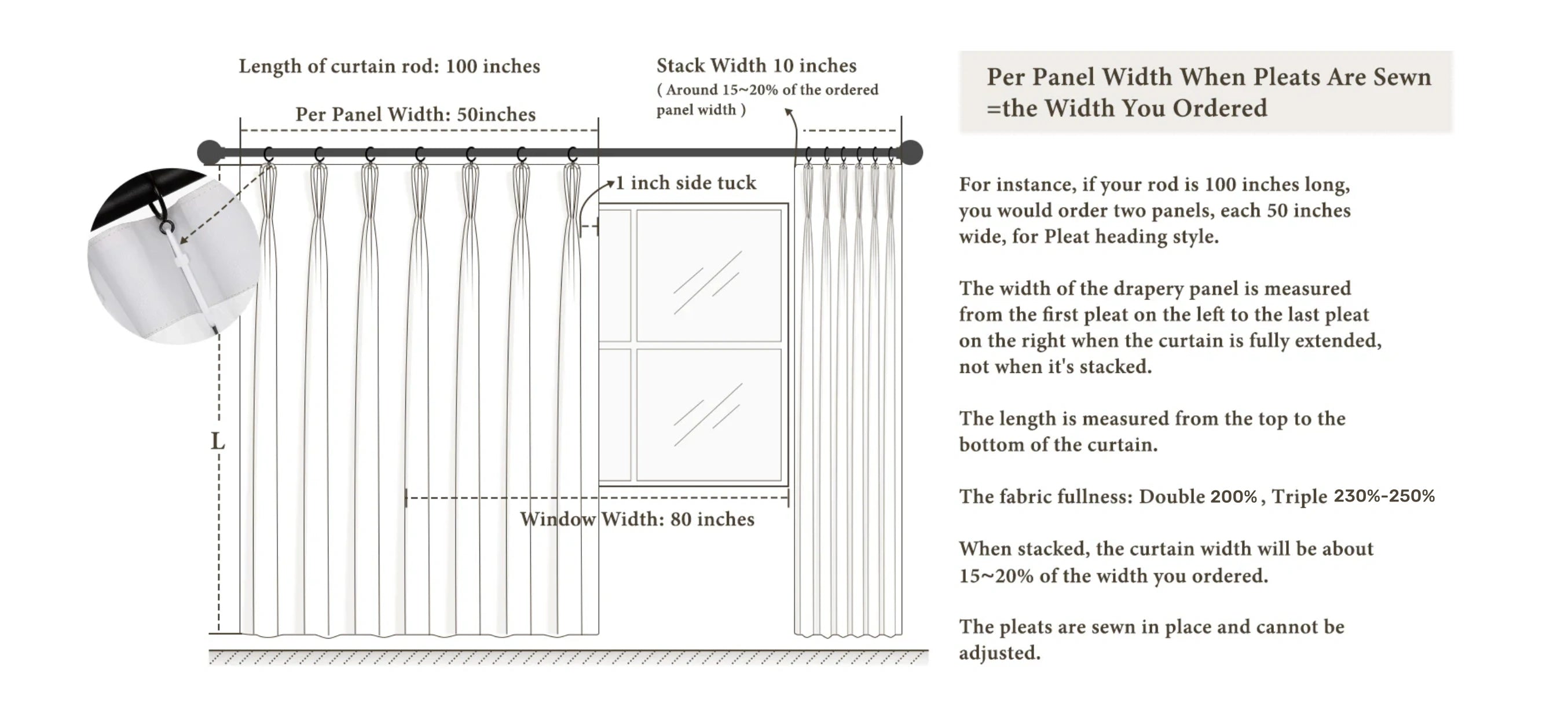

For Pleat Heading Style

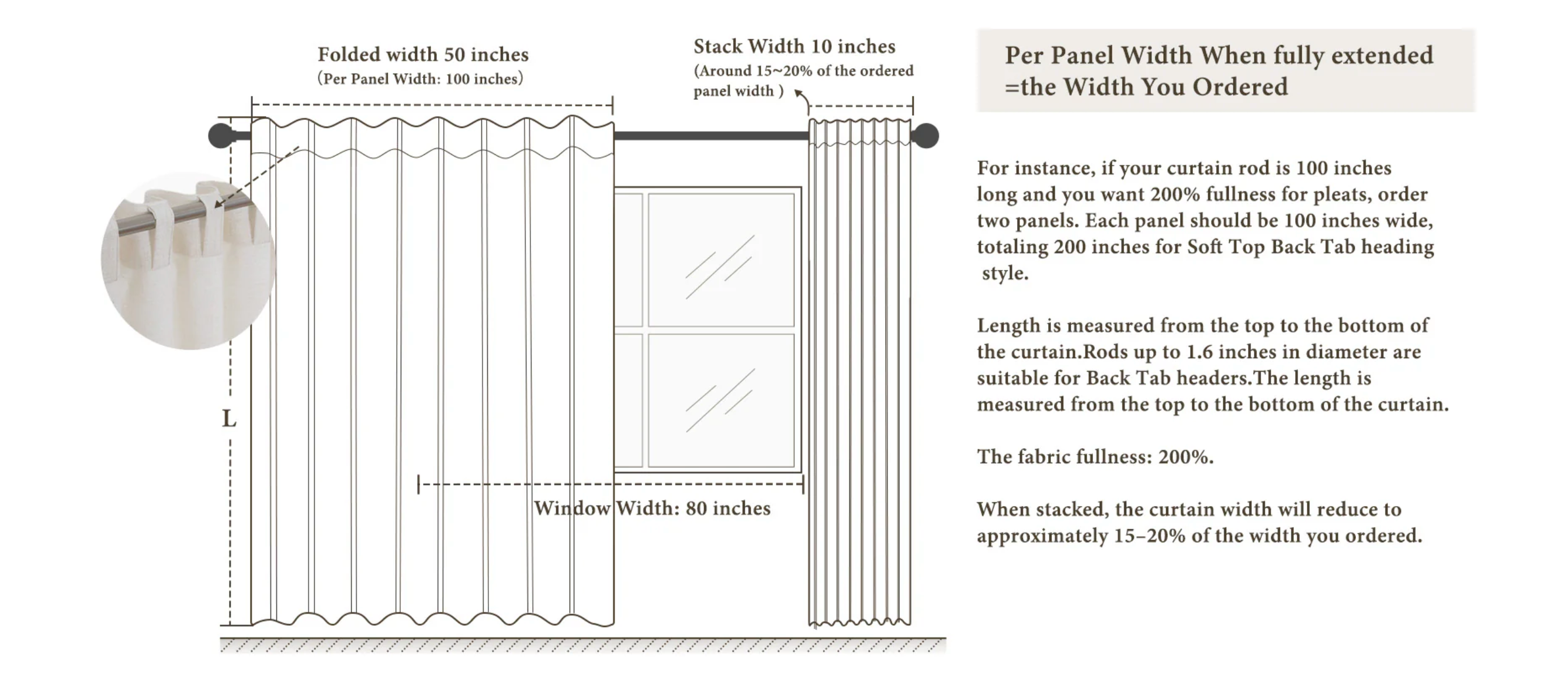

For Soft Top Heading Style

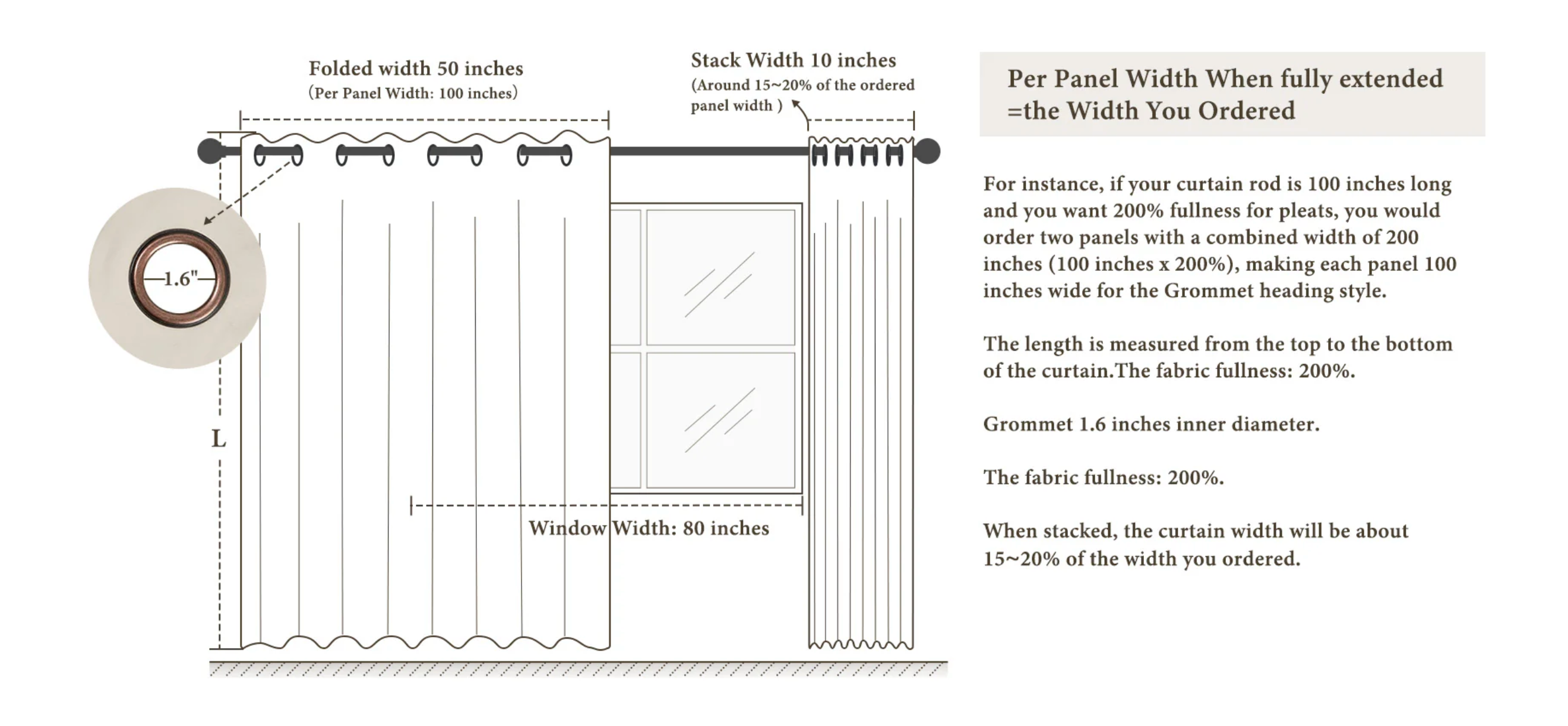

For Grommet Heading Style

For Ripple Fold Drapery

Finding The Perfect Fit

Shades Measuring Instruction

Before you focus on how to measure windows for blinds or shades, you must decide which type of mounting is right for you.

Inside Mount Your Window Treatments When:

Window Treatment Considerations

Inside Mount Requirements

Enough window depth for inside mount

Aesthetic Objectives

To get a sleek and minimalist aesthetic for your space
The window trim is visually appealing and should be highlighted rather than concealed
Prefer window treatments that blend seamlessly with the wall without protruding

Structural Conditions

The windows have sturdy frames capable of supporting the mounting hardware
The house is relatively new, with well-shaped rectangular windows

Outside Mount Limitations

The window sill extends outward, complicating the use of an outside mount

Outside Mount Your Window Treatments When:

Window Treatment Specifications

Inside Mount Limitations

The window depth is not enough, also is irregularly shaped, unsuitable for an inside mount
The window frame is too fragile or shallow to support an inside mount

Design Objectives

The objective is to cover unattractive window trim and refresh the window's appearance
The goal is to create the impression of taller, larger windows

Functional Requirements

Maximum light-blocking capability is required when the shades are drawn
Privacy is a primary concern, and the shades need to block external view when closed

Visual Adjustment

When rolled up, the window treatment should be as unobtrusive as possible

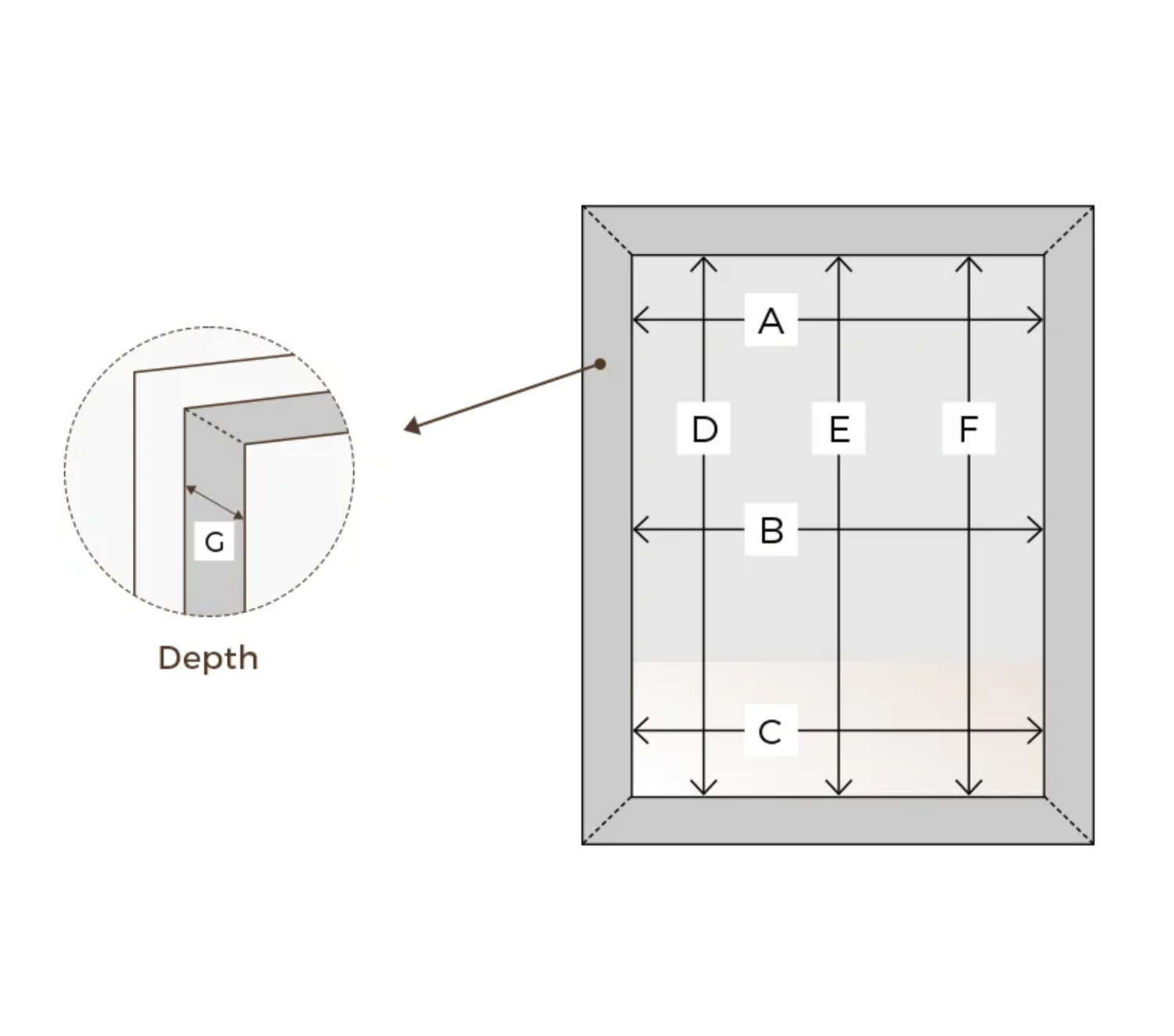

Measure the Window for Inside Mount

Window Measurement Guidelines

Depth Measurement

Measure inside casing depth at the top
Determines suitability for inside/flush mount
Note: Required depth varies by shade type

Width Measurement

Measure at three positions:
- Top
- Middle
- Bottom
Round down to nearest 1/8 inch

Length Measurement

Measure at three positions:
- Left
- Center
- Right
Round up to nearest 1/8 inch
Use largest measurement as final length

Note on Deduction

Measure the Window for Outside Mount

Window Measurement Guidelines

Check Space

Measure height above window for:
- Secure headrail installation clearance
- Bracket mounting space requirements

Width Measurement

Measure window's outer frame width
Add 2-4 inches total (if space allows) to:
- Minimize light gaps
- Determine final ordering width

Length Measurement

Measure window's outer frame height
Recommended installation:
- Mount 10-12 inches above frame (when possible)
- Allows space for shade stack height
- Maximizes window exposure
